$6,699 $6,599
Please note this is a Pre-Order. Payment reserves your spot in line. Inventory is expected in September and October, depending on size. We will contact you after your purchase to confirm your handlebar and crank length specifications.

We offer fast shipping and easy returns. More details can be found on our Shipping & Returns Page

It's important to care for your gear. We make recommendations on our Product Care Page

Marca Force AXS
Marca Force AXS
XS - Pre-Order
$6,599 $6,699 You save $100

Oak's Philosophy

Oak is a company operated by bike racers. We understand that cycling is an expensive hobby and lifestyle, and we wanted to create a frame that didn't compromise when it comes to performance without costing $5,500. We wanted to build a frame that we'd be excited to race in crits and road races, rip on fast group rides, and proudly lean against the café wall after a ride.

Every design decision was made with that philosophy in mind. We invested in the things that matter most to performance and longevity, while making intentional compromises where they made sense. That's why every bolt, axle and mount is made from titanium, and why we spec'd a CeramicSpeed SLT headset. At the same time, we chose to offer one cockpit option and one paint color. By offering our handlebars in the most popular width for modern racing and eliminating the need for multiple expensive molds, along with simplifying our paint options, we were able to keep the Marca at $2,899 for a frameset while delivering premium performance where it counts.

There was one clear goal for the Marca: to develop a high-end, competitive aero road bike that represents what Oak stands for as a brand - sophisticated design, joy, racing and family.

Built By Racers With Support From The U.S.

Oak is focused on building the cycling community, especially here in the United States. We know there are excellent brands from Asia and Europe offering quality race bikes at competitive prices, and we're excited to see more affordable options in the industry.

Our goal is to offer that same value while backing it with local support. Every frame is assembled, quality checked and supported from Boise, Idaho. That means straightforward warranty support, clear communication, faster shipping and no hassle dealing with overseas imports, tariffs or language barriers. We're here to support you and your riding from our home in Boise.

The Anatomy of the Marca


There are many reasons “why” the Marca has the features it does, but these are some of the most important:

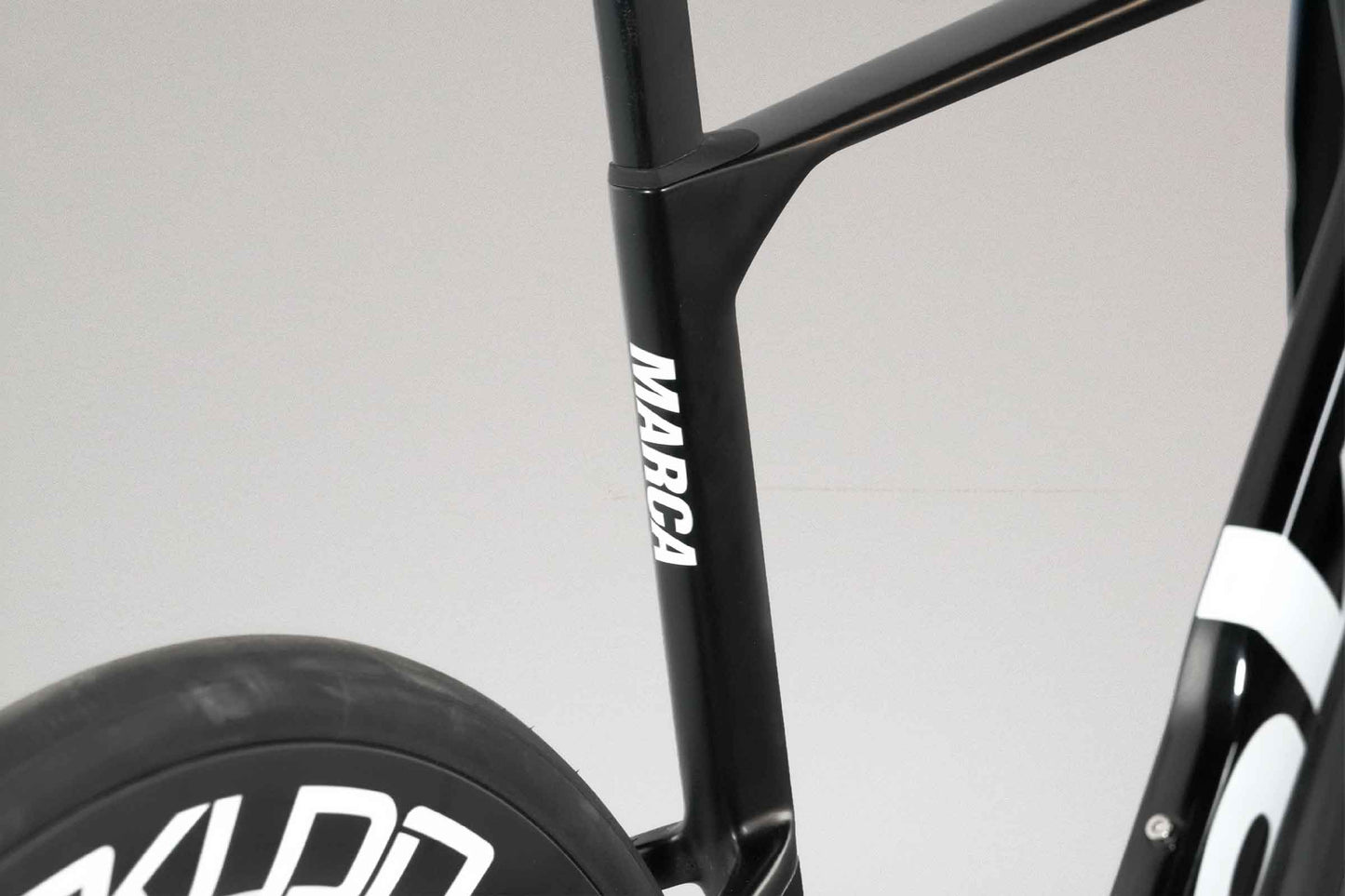

  • Aero & Lightweight: No, this isn't an all-around bike, it's an out-and-out aero road bike. That said, we still prioritized making it lightweight and comfortable. The Marca features a super wide fork, deep and extremely thin headtube, extremely thin seatpost, dropped seatstays and deep down tube. These decisions were all made to optimize the aerodynamic performance of the frame.
  • Geometry: We wanted something aggressive, yet comfortable and aerodynamic, thus the aggressive angles and high stack.
  • Tire Clearance: It was important for us to be able to fit wide road tires and chainrings on this frame. We're continuing to test tire clearance on different wheels, but in most cases, the Marca has clearance for 38mm measured tires.
  • Performance & Durability: Again, this is a high-end frameset (even though the price doesn't say so), so we wanted to pull out all the stops. All the bolts, axles and mounts are made of titanium. The headset is a CeramicSpeed SLT headset. This ensures durability of the parts (no stripped bolts here!) and helps reduce weight on the overall frame.

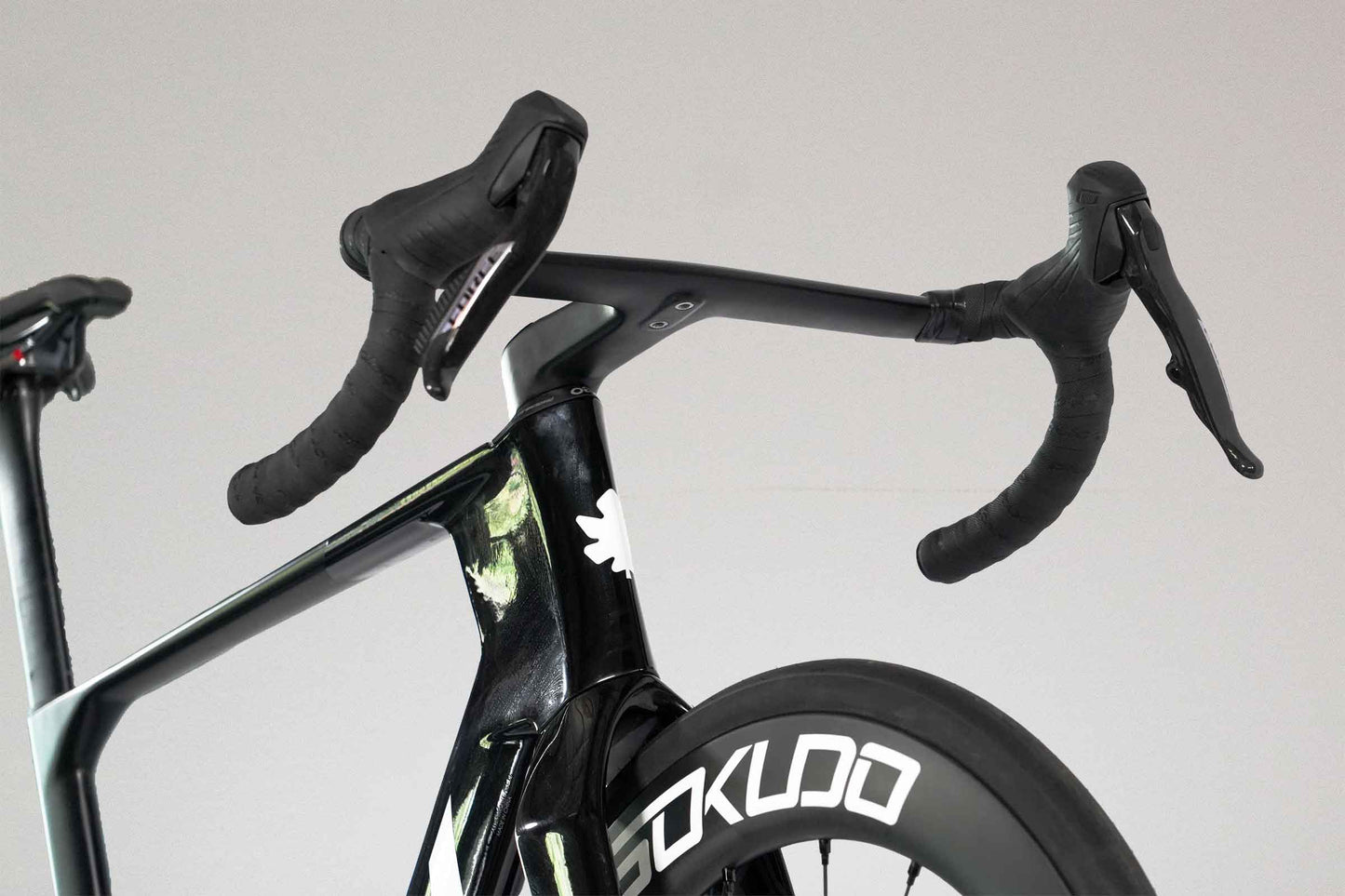

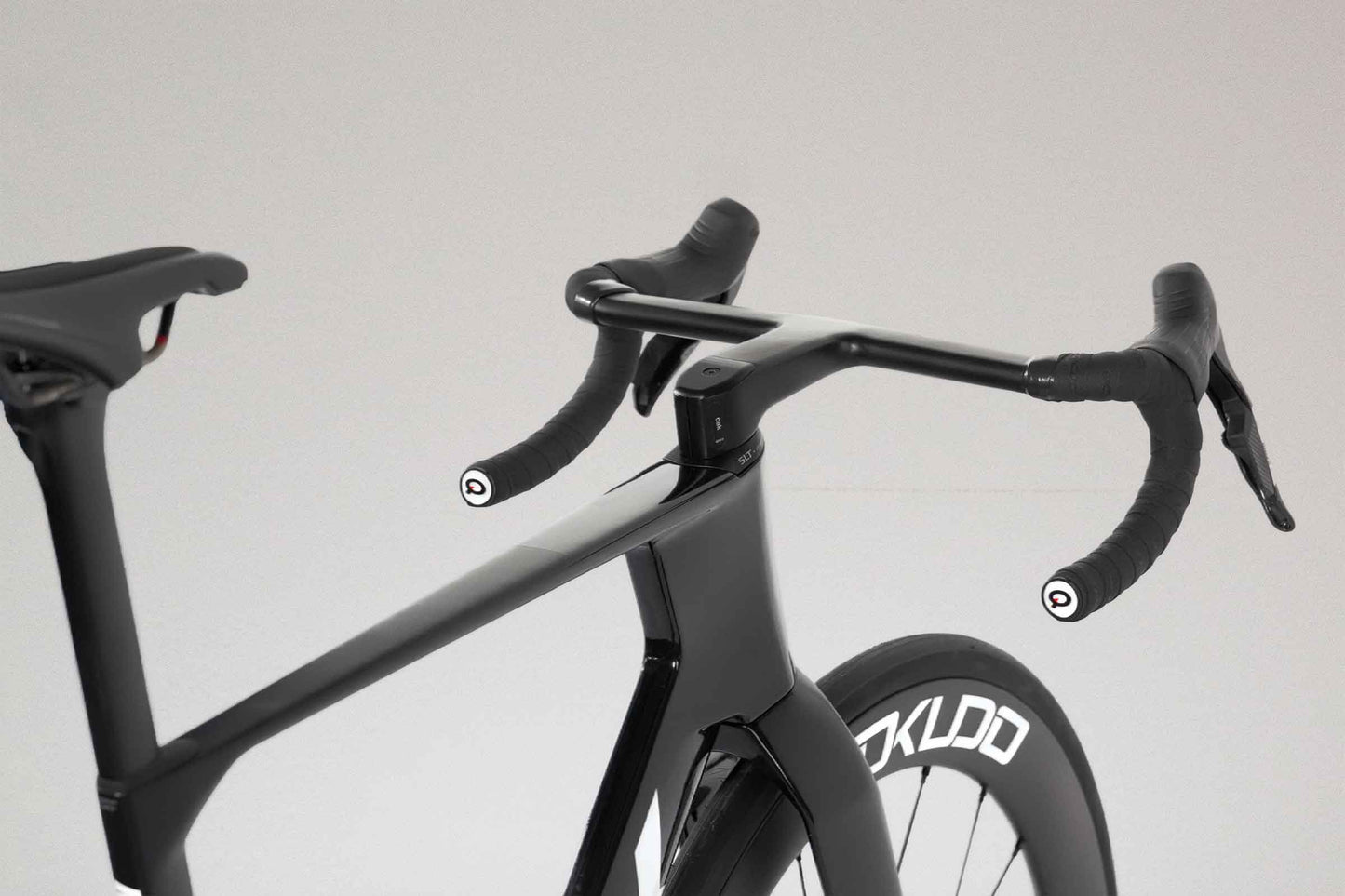

  • Handlebars: Designing handlebars was tough because with one-piece cockpits. We were looking at dozens of molds which as a small brand, we couldn't afford. This led us to offer a cockpit that we believe matches the trends and what most racers want. Our handlebar will come in one width and 6 stem lengths. In continuing to prioritize aerodynamics we will offer a handlebar that is 370mm center to center on the hoods and 400mm outside to outside on the drops. We will contact every customer in order to send them the right stem length.
  • Paint Job: The Marca features a classy black & white paint job. This is one of the areas where we saved money by going the simpler route. This reduced SKUs, cost and weight and we believe we found the perfect design. A half matte, half glossy, gorgeous paint job highlighting the actual design of the frame with edgy but still minimal branding.
  • UDH Compatible: 1x aero builds are a big part of the design of this bike, so the Marca being UDH compatible was a non-negotiable.
  • UCI Approved: The Marca is knocking on the UCI's minimum weight limit while maximizing aerodynamic performance.
  • Tested & Approved: The Marca passed the highest level of stress testing following international standards, performed by our trusted partners in China.
  • Made in China: After lengthy research and visiting multiple factories in China, we feel blessed to have found a factory partner perfect for the job. Developing this frameset with a factory and team of engineers that understood the vision and shared our excitement for it was essential and a big part of the reason for the success of the design.
  • Assembled in Boise, ID: All frames and bikes follow 2 rounds of quality control (one in China and one in Boise), then are assembled, packaged and shipped from Boise, ID.

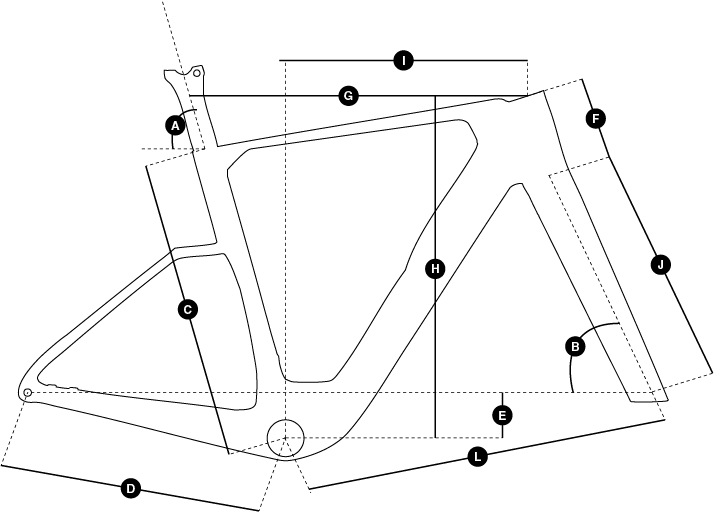

SIZEA (Seat tube angle)B (Head Tube Angle)C (Seat Tube)D (Chainstay length)E (BB Offset)F (Head Tube)G (Top Tube)H (Stack)I (Reach)J (Fork length)K (Fork rake)L (FC)M (Wheelbase)
XS74.5º72º47041072121520.2534.4372379.547576.2975.3
S74.5º72.5º50041072136534.6550.5382379.547586.5985.8
M74º73º53041072154553.4570390379.545593.7992.9
L74º73.5º56041072172568.9588.9400379.545604.31003.7
XL73.5º73.5º59041072200597.4615.8415379.545627.11026.6
SIZESpacersCockpit dimensionsCrank lengthChainring sizeSeatpost lengthMinimum seatpost insertionDisc size
XS20mm90/370mm160mm50/37TTBDTBD160/140mm
S20mm100/370mm165mm50/37TTBDTBD160/140mm
M20mm110/370mm165mm50/37TTBDTBD160/140mm
L20mm120/370mm170mm50/37TTBDTBD160/140mm
XL20mm120/370mm170mm50/37TTBDTBD160/140mm
Frame sizesXS-XL
Front axle dimension12x100 mm
Rear axle dimension12x142 mm
Steerer tube diameter1 1/8"
HeadsetCeramicSpeed SLT
Headset spacers40mm (3x10mm, 2x5mm)
Thru axlesOak Marca Titanium Thru Axles
Bottom bracketSRAM DUB T47 68mm
Tire clearance34mm (ISO) - 38mm (Measured)
CockpitOak Marca Cockpit
Handlebar width370mm (Measured from Hoods)
Stem length90-150mm
Seatpost0mm setback
Seatpost length400mm
Seatpost weight163 grams (with hardware)
CranksetSRAM RED E1 Crankset
ChainringSRAM RED E1 1x Aero 50T
Power meterSRAM RED E1 Direct Mount Power Meter
CassetteSRAM RED E1 XPLR 10-46T
ChainSRAM RED E1 Chain (waxed with Silca)
Front derailleurN/A
Rear derailleurSRAM RED E1 XPLR
Shift/Brake leversSRAM RED E1 AXS
Brake rotorsSRAM Paceline
WheelsSokudo 60
Wheel rim depth58mm
Wheel rim internal width24mm
Wheel rim external width30mm
Wheelset weight1350 +/- 20gr
Tires30mm Vittoria Corsa Pro TLR
Handlebar tapePrologo OneTouch Neutro
SaddlePrologo Dimension R2
Rear dropoutUDH Compatible
Frame materialCarbon fiber
Fork weight450 grams
Frame weight960 grams
Width (Hoods)Width (Drops)Stem LengthsStem AngleBar DropBar ReachFlare
37cm40cm90-150mm-10°100mm70mm1.5cm
